Selecting TPU software

Exam guide§2.1

Provisioning a TPU is only half the job - you also pick the software environment the machine boots into. Choosing the right version ensures compatibility, optimal performance, and access to the features you need.

What is a TPU software version?

When you create TPU resources you specify a TPU software version (also called a runtime version). It is not an arbitrary number - it names the complete software environment pre-installed on your TPU VM:

≡FactsWhat the runtime version bundles

• The underlying Ubuntu operating system.
• Docker, for containerization.
• All other essential software required to run your machine learning code directly on the TPUs.

Selecting a software version

You set the version at create time, through whichever interface you provision with:

Interface	How you pick the version
Google Cloud CLI	Pass the --version (or --runtime-version) parameter to gcloud compute tpus tpu-vm create.
Google Cloud console	Select from the TPU software version list in the Create a Cloud TPU form.

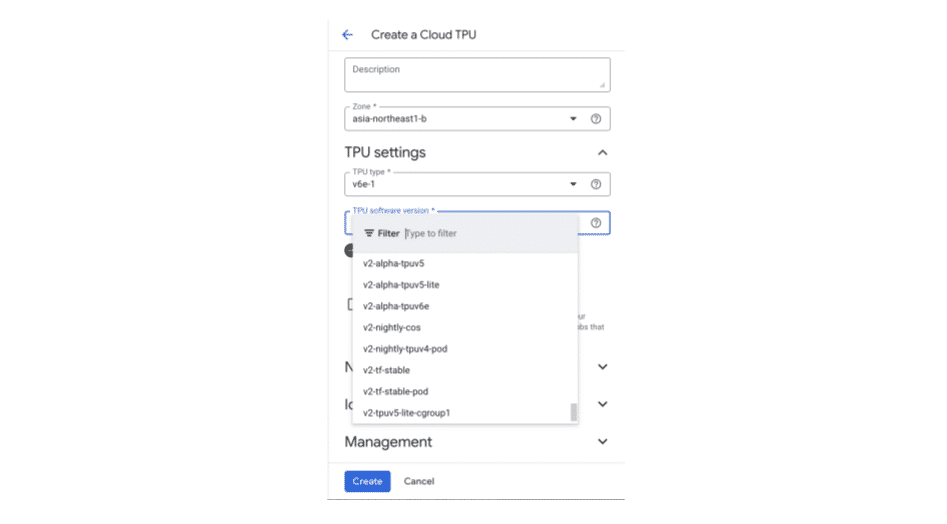

Console: the TPU software version dropdown in the Create a Cloud TPU form - pick the base version that matches your TPU hardware.

PyTorch and JAX

For PyTorch or JAX the choice is straightforward: pick a base version that supports your TPU hardware, then install your preferred framework on top of it. Common base versions by TPU generation:

TPU version	Common TPU software version
Trillium (v6e)	v2-alpha-tpuv6e
v5p	v2-alpha-tpuv5
v5e	v2-alpha-tpuv5-lite
v4 and older	tpu-ubuntu2204-base

⚠GotchaThe base version must match the hardware

The software version is tied to the TPU generation - a v6e base version will not boot a v5e slice, and vice versa. Match the version to the --accelerator-type you request, then layer PyTorch or JAX on top.

CommandsCreate a v6e TPU with the matching runtime

export ZONE=us-east5-a



gcloud compute tpus tpu-vm create lab-tpu --zone ${ZONE} \

--accelerator-type=v6e-4 \

--version v2-alpha-tpuv6e



# then, over SSH on the TPU VM, install PyTorch/XLA:

sudo apt-get update

sudo apt-get install libopenblas-dev -y

pip install numpy

pip install torch torch_xla[tpu] \

-f https://storage.googleapis.com/libtpu-releases/index.html

Demo: running PyTorch on a Cloud TPU VM
